iKier K70 Max Engineering Trade-Offs: What 70W Cutting and 35W Engraving Change

Key Takeaways

• The K70 Max uses a 70–77W cutting mode and a 35–39W engraving mode, each optimized for a different type of work.

• The 70W mode focuses on thick materials and fewer passes; the 35W mode uses a smaller spot for finer engraving.

• The 850×800mm work area expands nesting capacity, while requiring more space for the table, enclosure, exhaust, and fire-safety setup.

• The K70 Max is designed for studios that want to reduce thick-material passes and fit more parts on each sheet.

When thick stock needs pass after pass, large signs must be assembled from sections, or a batch of small parts will not fit on one sheet, the answer is more than simply “add power.” At iKier, we bring dual-power operation, a large work area, autofocus, and adjustable air assist together on the K70 Max so cutting and detailed engraving can use settings suited to each job.

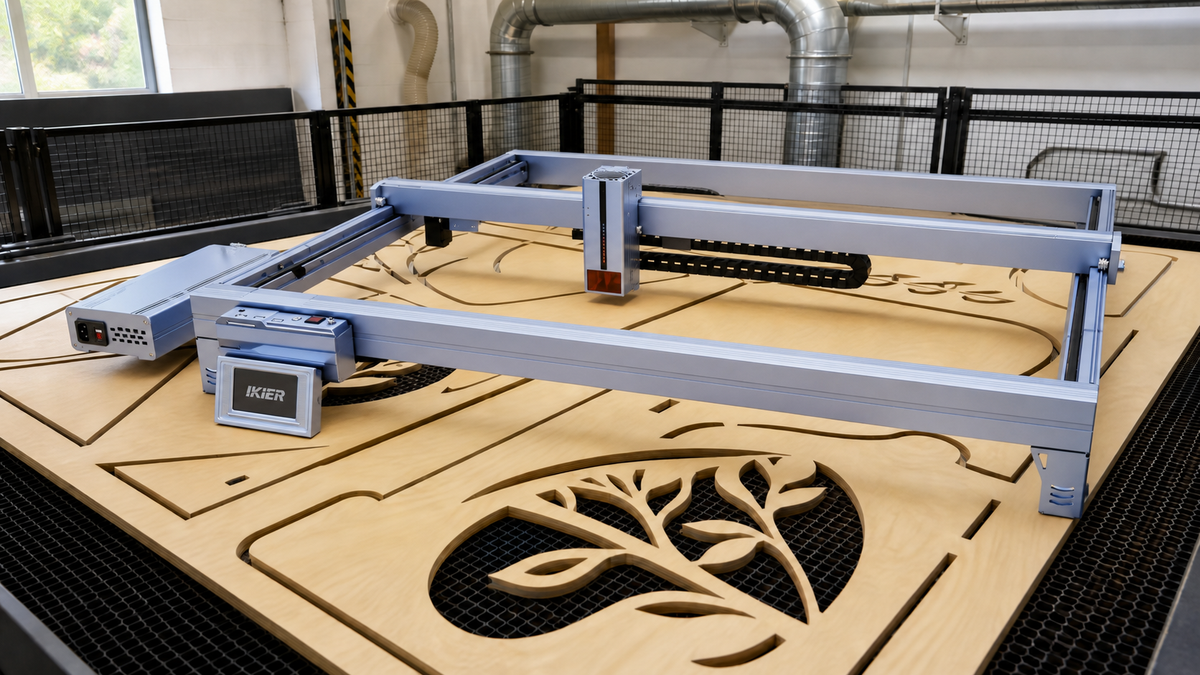

Image: The iKier K70 Max combines a 70W cutting mode with a 35W engraving mode for thick-material cutting and detailed work.

Why Dual Power Matters More Than a Single “Maximum Wattage”

The iKier K70 Max offers a 70–77W cutting mode, 35–39W engraving mode, 850×800mm work area, maximum movement speed of 600mm/s, 360W total machine input, and adjustable 0–60L/min air assist.

The spot size is 0.15×0.2mm in 70W mode and 0.1×0.15mm in 35W mode. Higher total output helps deliver energy deeper into a kerf, while the smaller spot is better suited to crisp small text and detailed graphics. The choice is not simply “strong” versus “weak”—it is a practical switch between cutting efficiency and detail density.

How the K70 Max Specifications Translate into Workflow Value

Start with the 28mm Paulownia and 25mm Acrylic Examples

The K70 Max product page shows one-pass cutting of 28mm paulownia and 25mm acrylic in 70W mode. These examples show how the high-power mode can bring thick stock and fewer passes into your workflow. For your own projects, first build a speed, power, and pass matrix with the wood species or acrylic you actually use. Record the front, back, taper, charred edge, and total time, then expand to full-sheet nesting only after one sample is confirmed.

The Benefits and Trade-Offs of a Large Work Area

The 850×800mm work area suits large signs and batch nesting on one sheet, but the machine itself measures approximately 1125×1090mm. Your actual setup must also allow for the enclosure, honeycomb bed, material loading and unloading, air-assist lines, and maintenance access.

The value of a large work area is not only the ability to hold larger material. It can also reduce assembly seams and repeated positioning. The trade-off is a larger safety perimeter: an open-frame, high-power machine should not run exposed and needs a wavelength-appropriate enclosure, source-capture exhaust, a stable table, and fire-safety measures.

How to Compare 35W and 70W Modes

Use the same sheet and the same file, then test three types of geometry:

1. Small text and fine lines to compare edge clarity.

2. Medium-thickness outlines to compare total processing time.

3. A long nested job to observe differences between the first and last part.

Record the mode, speed, power, passes, air assist, focus, front and back photos, and completion time. Do not change the mode, material, and design at the same time, or you will not know what caused the difference.

Who Is the K70 Max For?

The K70 Max is a strong fit when your core products use medium-to-thick wood or large signs, your current workflow is limited by pass count or work area, your studio can support a large enclosure, effective exhaust, and a stable table, and your team is ready to build a settings library for frequently used materials.

If you mainly create photos, fine text, thin parts, or only cut occasionally, do not upgrade solely because of “70W.” A more compact mid-power machine may complete the same work with lower space and safety overhead.

Conclusion

The K70 Max combines high-power cutting, a large work area, and a dual-mode workflow on one platform. Explore the K70 Max product details, then cut and engrave a sample set using your primary materials to see how many passes it can remove and how much nesting space it can add to your workflow.

FAQ

Q1: Is 70W mode always clearer than 35W mode for engraving?

 A: No. The 35W mode has a smaller spot, so detailed engraving should be judged with matched samples from the same file, not by maximum power alone.

Q2: Can the 25mm acrylic example be applied to every color?

 A: Different colors and formulations absorb blue light differently. Test the same acrylic used in your final product before locking in speed, power, and pass count.

Q3: Is 600mm/s the cutting speed?

 A: It is the motion system’s maximum movement speed. Actual cutting speed depends on the material, thickness, required edge quality, and air-assist setting.
